Product Overview

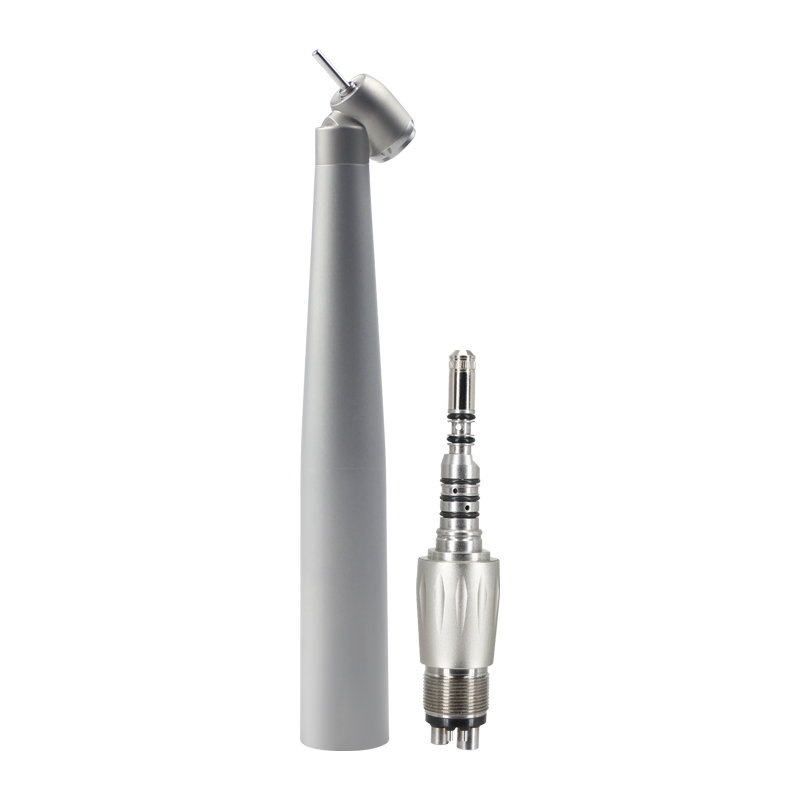

The LY-M1001 fiber optic handpiece uses a quick-coupling design that separates the LED light source and air motor from the handle, simplifying sterilization and extending service life.
Detailed Description
The LY-M1001 fiber optic handpiece uses a quick-coupling design that keeps the LED light source and air motor inside the coupling, separated from the handle. After use only the handle needs to be sterilized, so the motor is never damaged by high-temperature autoclaving and the lamp stays bright — giving longer service life and lower running costs.
Key Features
- LED fiber optic with quick coupling
- 4 water spray
- LED lamp and air motor separated from the handle — no autoclave damage to the motor
- Handle-only sterilization after use
- Imported ceramic bearing
- Push-button model, 2-hole / 4-hole compatible
- Independent water and spray control
Technical Specifications
| Working air pressure | 0.20-0.30 MPa |
| Rotation speed | 350,000-400,000 rpm |
| Bur applicable | φ1.59-1.60 mm |
| Noise | ≤80 dB |
| Water spray | 4 points |
| Connector | quick coupling (LED fiber optic) |
Applications
- LED-illuminated cavity preparation
- General restorative dentistry
- High-volume practices that autoclave handpieces frequently
- Procedures where fiber optic light improves visibility
Compatibility
- 2-hole / 4-hole dental unit connectors
- FG burs φ1.59-1.60 mm
